Security Filtering—Access Control Lists and VPN

Author: Sophia
what's covered
In this lesson, you will learn about security filtering and how to use access control lists and VPNs.

Specifically, this lesson will cover the following:

Table of Contents

before you start
It is important to control who or what can access a network by identifying the specific computers and individuals who have the right to gain access to it and its resources. But how do we do this? There are some basic ways to safely allow selected computers to have access to your network. There are also ways to keep those that are unwanted, out.

1. Access Control Lists

The first line of defense is something called security filtering, which broadly refers to ways to let people securely access your resources. This process is twofold and includes ensuring that only authorized computers get to enter your network and making sure that the data you are sending back and forth between networks are secured so they cannot be intercepted and translated by malicious attackers.

It is rare to find a network around these days that is not connected to the internet. The internet is clearly a public internetwork that anyone can connect to, but your personal network and that of your company are private ones. Every time you connect to the internet from a private network, you may be vulnerable to security break-ins. This is where a firewall comes into play. Firewalls are basically tools that you can implement to prevent any unauthorized users roaming around on public networks from gaining access to your private network.

big idea
One method to control access to your network is the use of access control lists (ACLs). ACLs typically reside on routers to determine which packets are allowed to route through them based on the requesting device’s source or destination IP address.

EXAMPLE

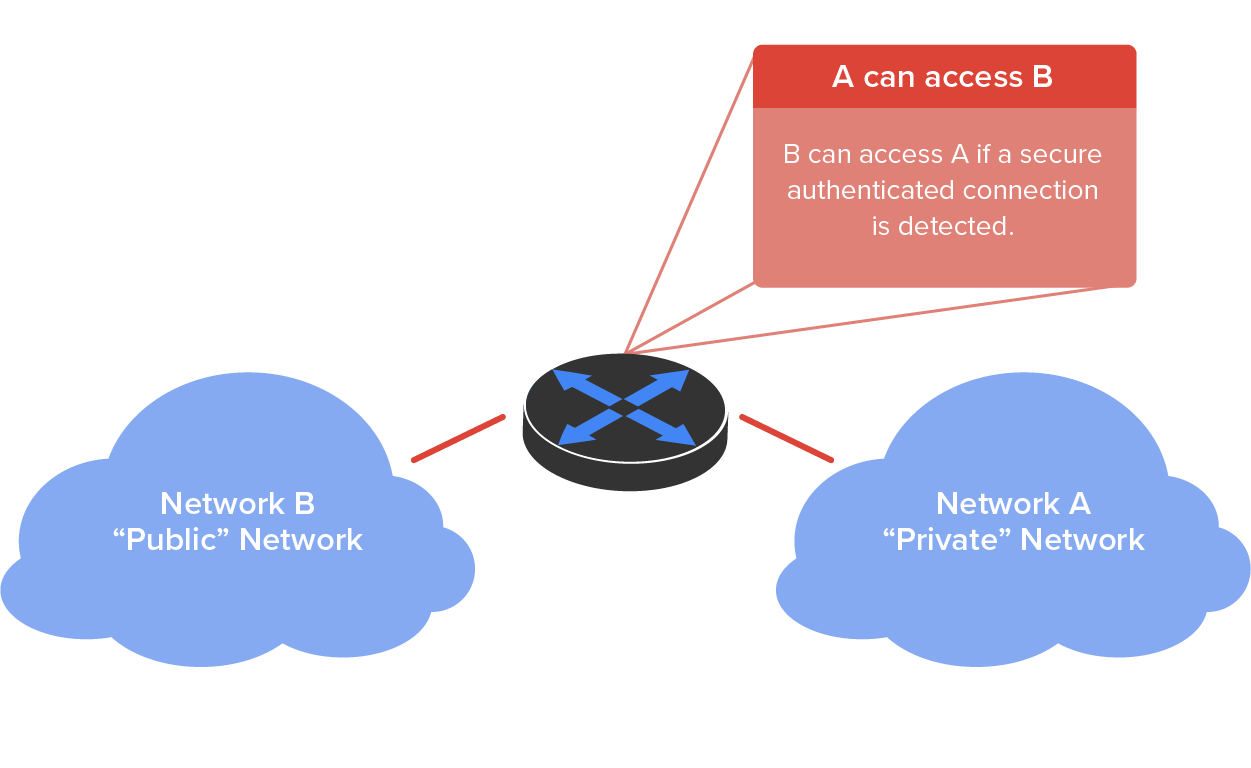

The illustration below demonstrates how ACLs prevent unauthorized users on Network B from accessing Network A.

A network setup with two clouds representing two networks: the cloud on the left is labeled ‘Network B, Public Network’, and the cloud on the right is labeled ‘Network A, Private Network’. Both networks are connected by lines to a central disk-shaped router or switch in the middle with bidirectional crossed arrows on it. A box above the router is labeled with the title ‘A can access B’. The text below it is ‘B can access A if a secure authenticated connection is detected’. Three lines branch out from the router to connect to the three nearest corners of the box.

What we see above is that users in Network A can pass through the router into Network B. This means that an IP spoofing attack, where someone pretends to have a network address inside a firewall to gain network access, can still happen if a user in Network B pretends to be located in Network A.

You can create a wide array of ACLs, from the very simple to the highly complex, depending on exactly what you want to have them do for you. One example of the use of an ACL places separate inbound and outbound ACLs on a router. This ACL ensures that the data that are leaving your network come from a different source than the data that are coming into it.

key concept
When configuring ACLs between the internet and your private network to mitigate security problems, it is a good idea to include the following four conditions to prevent any unwanted outside access to your network:
  • Deny any addresses from your internal networks
  • Deny any local host addresses (127.0.0.0/8)
  • Deny any reserved private addresses
  • Deny any addresses in the IP multicast address range (224.0.0.0/4)

None of these addresses should ever be allowed to enter your private network. Let’s look at a variety of methods for controlling access.

terms to know
Firewall
The software that monitors traffic in and out of a private network or a personal computer and allows or blocks such traffic depending on its perceived threat.
Access Control Lists (ACLs)
Lists that typically reside on routers to determine which packets are allowed to route through them based on the requesting device’s source or destination IP address or MAC address.
Spoofing
A method of attacking a computer program in which the program is modified so as to appear to be working normally when, in reality, it has been modified with the purpose of circumventing security mechanisms.

1a. MAC Filtering

Most of the time, it is wise to configure ACLs so that they will allow or deny access based on the IP address of the source or destination device. If your network is running a protocol other than Transmission Control Protocol/Internet Protocol (TCP/IP), you can filter traffic based on a medium access control (MAC), or hardware, address instead of an IP address. You can still use an ACL based on a MAC address if you are running TCP/IP, but keep in mind that it is a lot easier to deal with IP addresses than MAC addresses.

hint
Even though most firewalls and routers will allow you to create both IP-based and MAC-based ACLs, doing so can create a complex situation where access is denied when it really should not be.

1b. Port Filtering

ACLs can also be used to filter based on port numbers as well as IP addresses. In fact, most firewalls default to allowing only the open ports that you specify. When managing a firewall, it is important to know the port numbers of all traffic that needs to be allowed through it. This means that for some of your applications, you will need to read and learn the port numbers being used. It is important to know the port numbers of security protocols like SSL (TCP port 443) and IPSec (UDP port 500).

hint
Successful firewall management involves being aware of and allowing only the ports to keep authorized services running.

1c. Tunneling

A huge amount of sensitive data is sent out over the internet without any encryption or security. Security protocols are sets of conditions or rules that define how a secure connection is maintained when we send sensitive data through an unsecured medium like the internet or a wireless connection. Before talking about security protocols, let’s define a few terms.

The first is a concept called tunneling, which basically means encapsulating one protocol within another to ensure that a transmission is secure.

EXAMPLE

We typically use IP known as a payload protocol that can be encapsulated within a delivery protocol like Internet Protocol Security (IPSec). If you took a look at these packets individually, you would see that they are encrypted. If you look at the process as a whole, it appears that a point-to-point tunnel is created on the internet.

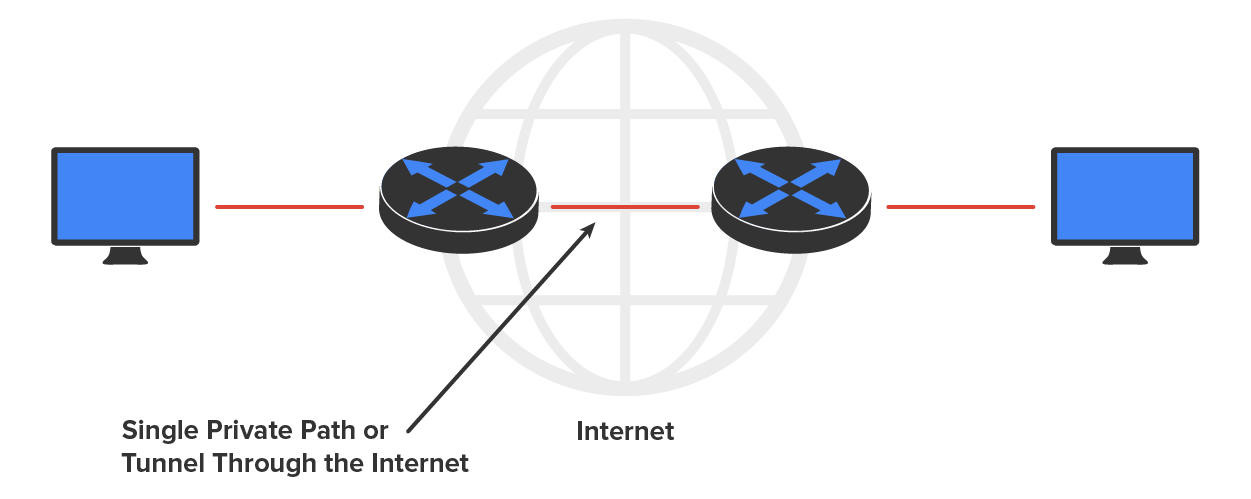

The diagram below illustrates this:

A network setup with a computer on the left, which is connected to a router via a line. A line connects this router to another router on the right. The second router is connected to another computer on the far right. The line is labeled ‘Single Private Path or Tunnel Through the Internet’. In the background of the routers, there is an image of a large globe representing the internet.

Let’s move on to discuss various tunneling protocols.

A virtual private network (VPN) fits somewhere between a LAN and WAN and many times may seem just like a WAN link because your computer, on one LAN, connects to a different, remote LAN and uses its resources remotely. The key difference with VPNs is security. A typical WAN connects two or more remote LANs together using someone else’s network—for example, your telecommunications provider. Your local host and router see these networks as remote networks and not as local networks or local resources. This would be a WAN in its most general definition. A VPN actually makes your local host part of the remote network by using the WAN link that connects you to the remote LAN. The VPN will make your host appear on the network as though it’s actually local on the remote network. This means that we now have secure access to the remote LAN’s resources.

EXAMPLE

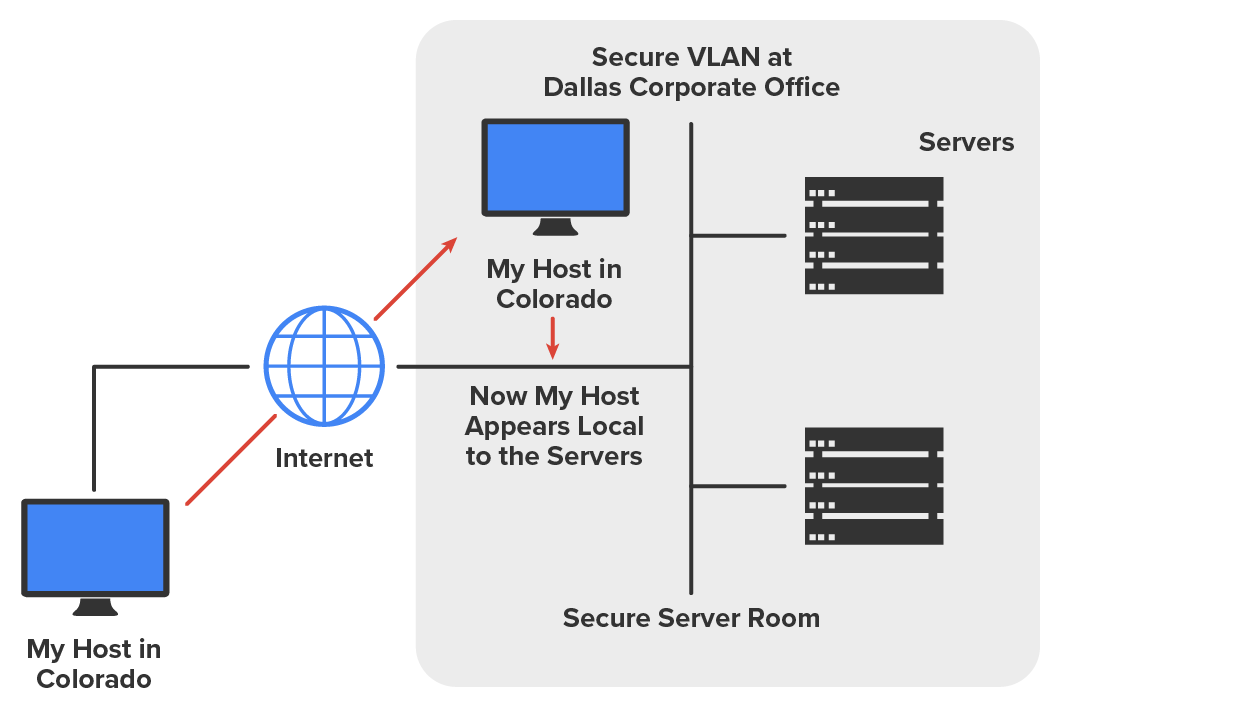

The diagram below shows this example of a host using a VPN connection from Boulder to Dallas, which allows access to remote network services and servers as if the host were right there on the same VLAN as the servers.
A remote access network setup, where a host computer uses a VPN connection from Boulder to Dallas. On the bottom left is a computer labeled ‘My Host in Colorado’. This host connects to the internet, which is represented by a globe icon in the center. Next to the globe icon is a rectangular area labeled ‘Secure V LAN at Dallas Corporate Office’, which has a computer and two servers. The internet extends into the rectangular area via a line that divides into two to connect to two servers stacked one above the other on the far right, and the bottom of the rectangular area states, ‘Secure Server Room’. An arrow extends from the ‘My Host in Colorado’ computer and moves diagonally upward to the right, extending into the internet icon and entering the ‘Secure V LAN at Dallas Corporate Office’, pointing at the other computer positioned at the top labeled ‘My Host in Colorado’. Below it, an arrow points to the text ‘Now My Host Appears Local to the Servers’.

A VPN allows you to connect to resources by locally attaching to the VLAN through a VPN across the WAN. The different types of VPNs are named based on the kind of role they play in a real-world business situation. There are three different categories of VPNs:

Remote-access VPNs allow remote users like telecommuters to securely access the corporate network wherever and whenever they need to.

A host-to-host VPN is somewhat like a site-to-site VPN in concept, except that the endpoints of the tunnel are two individual hosts. In this case, all traffic is protected from the time it leaves the NIC of one host till it reaches the NIC of the other host.

Site-to-site VPNs, or intranet VPNs, allow a company to connect its remote sites to the corporate backbone securely over a public medium like the internet instead of requiring more expensive WAN connections like MPLS. This is probably the best solution for connecting a remote office to the main company office.

Extranet VPNs allow an organization’s suppliers, partners, and customers to be connected to the corporate network in a limited way for business-to-business (B2B) communications.

terms to know
Tunneling
A means of encapsulating one protocol within another to ensure that a transmission is secure.
Payload Protocol
A protocol that carries the part of the transmitted data that is the actual intended message.
Delivery Protocol
A protocol that encapsulates a payload protocol.
Virtual Private Network (VPN)
A public network connection that emulates a private network connection by using encryption to keep information secure.
Remote-Access VPN
Allows remote users like telecommuters to securely access the corporate network wherever and whenever they need to.
Host-to-Host VPN
Supports tunneling between two individual hosts.
Site-to-Site VPN
Enables an organization to connect its remote sites to the enterprise’s backbone securely over a public medium like the internet instead of requiring more expensive wide area network connections like MPLS.
Extranet VPN
Allows an organization’s suppliers, partners, and customers to be connected to the corporate network in a limited way for business-to-business (B2B) communications.

1d. SSL and SSL VPN

Secure Sockets Layer (SSL) is a security protocol based on the RSA public-key encryption that is used to enable secure connections over the internet between a web browser and a web server. SSL is service independent, meaning a lot of different network applications can be secured with it. SSL was merged with other security protocols to form a new protocol called Transport Layer Security (TLS). The latest version of TLS (TLS 1.3) provides a number of enhancements over earlier versions.

EXAMPLE

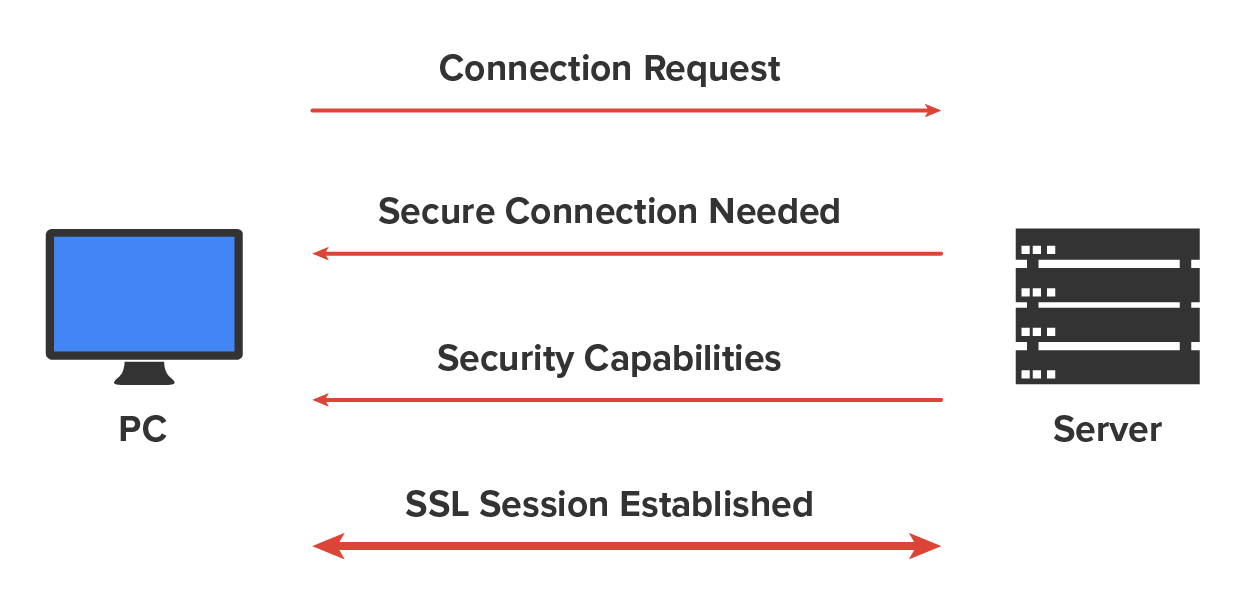

The diagram below shows the SSL connection process.
A desktop computer icon labeled ‘PC’ is on the left, and a server rack icon labeled ‘Server’ is on the right. Four horizontal arrows are placed one above the other between the PC and the Server. The first arrow at the top points from the PC to the Server and is labeled ‘Connection Request’. The second arrow returns to the PC from the server and is labeled ‘Secure Connection Needed’. The third arrow returns to the PC from the Server and is labeled ‘Security Capabilities’. The fourth arrow at the bottom is a double-headed arrow labeled ‘SSL Session Established’.

Layer 2 Tunneling Protocol (L2TP) was created by the Internet Engineering Task Force (IETF). It comes in handy for supporting non-TCP/IP protocols in VPNs over the internet. L2TP is actually a combination of Microsoft’s Point-to-Point Tunneling Protocol (PPTP) and Cisco’s Layer 2 Forwarding (L2F) technologies.

Point-to-Point Tunneling Protocol (PPTP) acts by combining an unsecured Point-to-Point Protocol (PPP) session with a secured session using the Generic Routing Encapsulation (GRE) protocol.

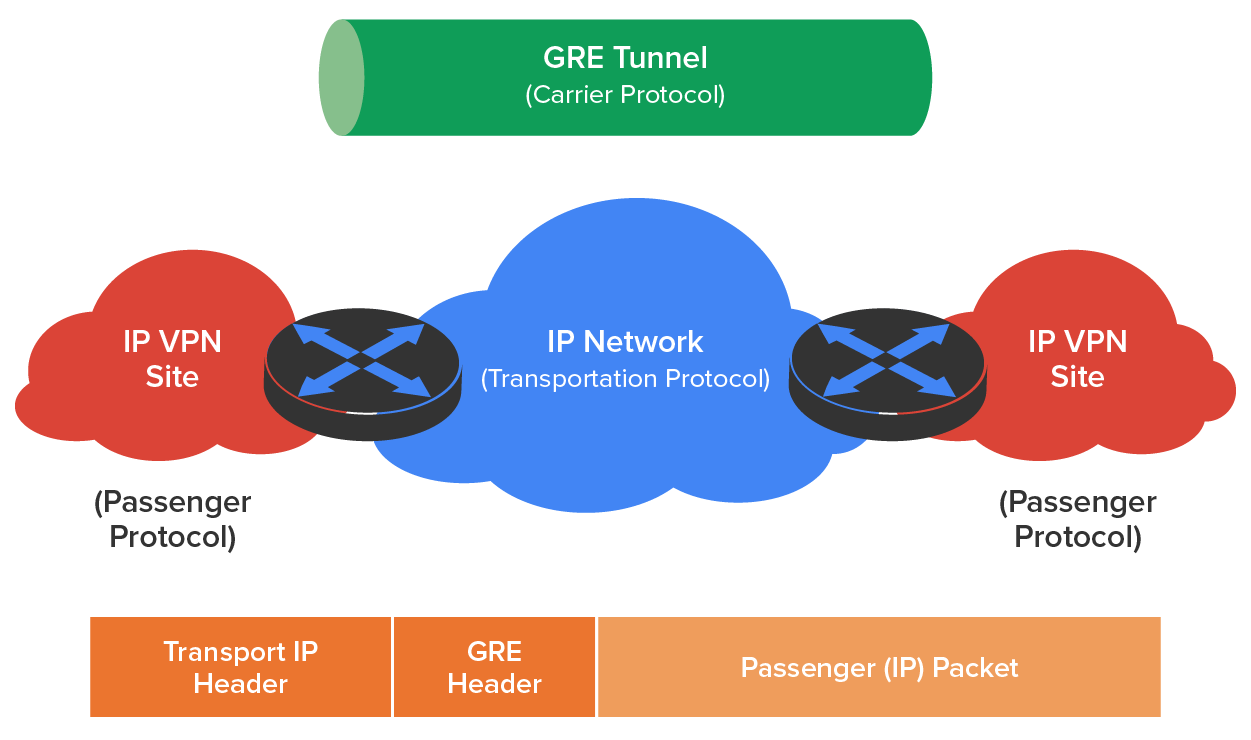

Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate many protocols inside IP tunnels. Some examples would be routing protocols such as EIGRP and OSPF and the routed protocol IPv6. The diagram below shows GRE.

A network setup with two cloud shapes labeled ‘I P VPN Site’ on the left and right sides, representing the source and destination VPN sites. Both are marked as using the ‘Passenger Protocol’. In the center is a large cloud labeled ‘I P Network, Transportation Protocol’, representing the public or core I P network over which the traffic is routed. Between the two VPN sites and the I P network are two routers. At the top, there is a cylindrical shape labeled ‘GRE Tunnel, Carrier Protocol’. At the bottom is a horizontal rectangular structure that is divided into three blocks, where the first block to the left is labeled ‘Transport I P Header’, the second block is labeled ‘GRE Header’, and the third block to the right is labeled ‘ Passenger I P Packet’.

IP Security (IPSec) was designed by the IETF for providing authentication and encryption over the internet. It works at Layer 3 (network) of the OSI model and secures all applications that operate in the layers above it. Because it is sanctioned by the IETF and designed to work with IPv4 and IPv6, it is the standard for VPNs on the internet today.

The two major protocols you will find working in IPSec are Authentication Header (AH) and Encapsulating Security Payload (ESP). AH provides authentication services, but ESP provides both authentication and encryption abilities. Both of these protocols can be used with either mode discussed in the following paragraph.

The Internet Security Association and Key Management Protocol (ISAKMP) defines procedures and packet formats to establish, negotiate, modify, and delete security associations (SAs). SAs contain the information required to execute security services, such as header authentication and payload encapsulation. ISAKMP’s real value is its ability to provide a framework for safely transferring key and authentication data independent of the key generation technique, encryption algorithm, and authentication mechanism. ISAKMP is integrated into IPSec.

terms to know
Secure Sockets Layer (SSL)
A security protocol based on the RSA public-key encryption that is used to enable secure connections over the internet between a web browser and a web server.
Layer 2 Tunneling Protocol (L2TP)
A tunneling protocol used to support virtual private networks (VPNs)
Point-to-Point Tunneling Protocol (PPTP)
A legacy method for implementing virtual private networks.
Generic Routing Encapsulation (GRE)
A tunneling protocol that can encapsulate many protocols inside IP tunnels.
IP Security (IPSec)
A secure network protocol suite that authenticates and encrypts packets of data to provide secure encrypted communication between two computers over an IP network.
Authentication Header (AH)
A protocol that ensures connectionless integrity by using a hash function and a secret shared key.
Encapsulating Security Payload (ESP)
A protocol that provides origin authenticity through source authentication, data integrity through hash functions, and confidentiality through encryption protection for IP packets.
Internet Security Association and Key Management Protocol (ISAKMP)
A protocol that defines procedures and packet formats to establish, negotiate, modify, and delete security associations.

summary
In this lesson, you learned about security filtering using access control lists and VPNs. We discussed MAC filtering, port filtering, and tunneling. You also learned about various tunneling protocols, including SSL, L2TP, PPTP, GRE, IPSec, and ISAKMP.

Source: This content and supplemental material has been adapted from CompTIA Network+ Study Guide: Exam N10-007, 4th Edition. Source Lammle: CompTIA Network+ Study Guide: Exam N10-007, 4th Edition - Instructor Companion Site (wiley.com)
