Identifying the Patterns

1. Breaking Things Down

Now that we have the initial set of high-level steps, we will want to start breaking some of the steps down further, if it makes sense, to start defining what the overall program should do. Let’s take a look at the steps and start to define patterns. In particular, we want to think about what conditional statements may need to be used, what statements could benefit from the use of a loop, as well as what pieces of code may be repeated which could be broken down into a function or method. Remember back to Unit 1 when we started to define the algorithms for the guessing game. We looked at ways to break things down through conditional statements and loops in the algorithms.

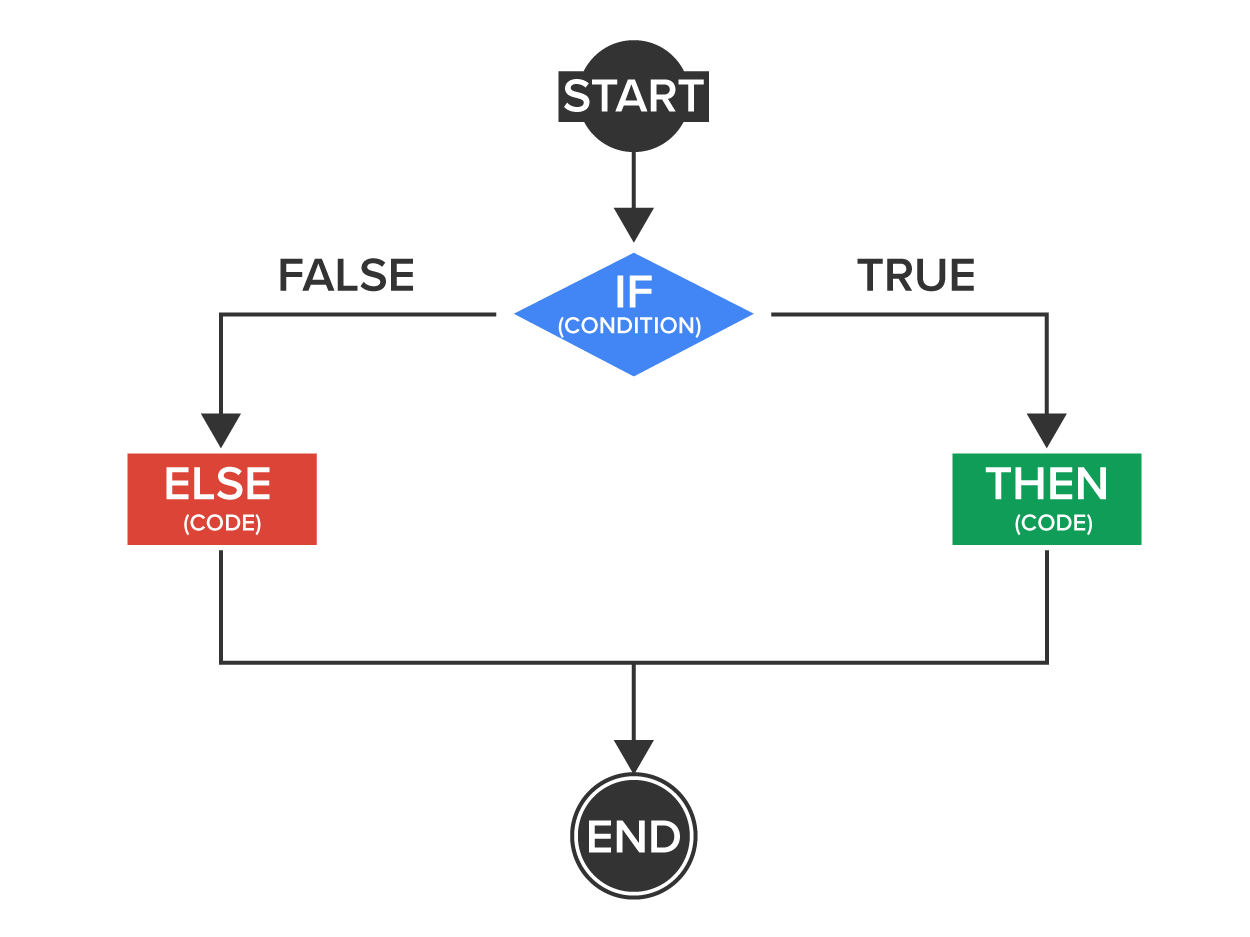

To help with finding patterns with conditional statements, we should start by looking at situations where the program may need to branch. Typically, a good example may be after user input or after a calculation. If we’re prompting the user for a value, we should think about whether we need to do different things based on the input. After a calculation, do we have different output based on the result of that calculation? Some of these calculations and results may have been performed already.

When it comes to loops, there are some common ways to use them. If we find ourselves needing to perform the same task over and over again, using a loop would help with that. An example could be a program that has a menu of options. We may have the user continuously being presented with a menu of options until the user enters an option to exit the loop. There are other situations that would benefit from using a loop such as iterating through a list or other data collection type, or performing calculations on a set of criteria that requires a loop like calculating averages, reading data from a file, etc.

Remember that a for loop is one that would be used when you have a known number of times that a loop should be executed prior to the loop. A while loop should be used if it is an unknown number.

With methods or functions, this generally would be useful if we have a set of statements that would be used in more than one place in a program. Think of all of those times in past code examples when you needed input and provided output. Rather than writing the lines of code to perform those tasks, we can simply call a function or method that performs those repeating tasks. To make functions or methods useful to multiple programs, they should only perform a single simple task.

Remember in our game, we based things on the initial criteria and questions. Having those specifically defined is important since we want to ensure that we’ve captured each criterion and consideration. Here is the example of questions and answers we originally had:

• How would the game of casino craps be played?
  • With the game of craps, the game is made with players putting bets on the first roll of the sum of two dice, also known as the come-out roll. In this round, the players must decide whether the dice will land on 7 or 11 (pass bet) or 2, 3, or 12 (don’t pass bet). The round ends if the total dice value is 7 or 11 (known as a natural), or 2, 3, or 12 (craps). If the total of the dice value rolled is a 4, 5, 6, 8, 9, or 10, then that number becomes the point and starts the next stage of the game. The shooter then rolls the dice again and repeats until the shooter rolls a 7 or the point number, which ends the craps game. If a 7 is rolled, they “sevens out” and lose. If they rolled the initial point score, they win the round.
• What would the rules be for the game?
  • Player rolls two dice the first time.
    • If 2, 3, or 12 is rolled on the first time, the player loses.
    • If 7 or 11 is rolled on the first time, the player wins.
    • If any other number is rolled, that number becomes the point value or initial sum.
  • If the player has not won or lost, roll again.
    • If the sum of the roll of the two dice is equal to 7, the player loses.
    • If the sum of the roll of the two dice is equal to the initial sum, the player wins.
    • If the sum of the two dice is anything else, roll again.

We used a very simple format to define the steps for a specific attempt at a game but within it, there may be many other steps involved. Let’s revisit these now.

Scenario 1:

1. Roll two six-sided random dice for the first time, getting a 1 and a 2.
2. Add the values on the top of the two dice, getting 3.
3. The player loses the game.

Scenario 2:

1. Roll two six-sided random dice for the first time, getting a 3 and a 4.
2. Add the values on the top of the two dice, getting 7.
3. The player wins the game.

Scenario 3:

1. Roll two six-sided random dice for the first time, getting a 1 and a 4.
2. Add the values on the top of the two dice, getting 5.
3. The value is not 2, 3, 7, 11, or 12, so the game continues.
4. Roll the two dice again, getting a 3 and a 6.
5. Add the values on the top of the two dice to get 9.
6. That value is not equal to either 7 or 5, so the game continues.
7. Roll the two dice again, getting a 4 and a 3.
8. Add the values on the top of the two dice to get 7.
9. The player loses the game.

Let’s break down the logic as that’s the crucial part of the program to determine how the game plays. There will be other parts of the program that may also be needed but we’ll focus purely on the logic here.

One initial step is to determine what the variables may need to be. A good starting point would be to identify the variables that would be used to store values. This would include things like the player, the dice, the condition for whether the player won or lost, the point value, and the rolled value. The other part is to define patterns. With the full scenario (scenario 3), we’ll see that steps 4-6 repeat until the condition is met. In the first and second scenarios (1 and 2), the player could win right from the start.

Let’s start to break this down into pseudocode.

Remember pseudocode is English-like statements that describe the steps in a program or algorithm. It is a way to layout logical steps but not get too lost in syntax.

So, based on our steps above, we can start defining these variables and patterns that we see.

Set the rolled value to roll first dice + roll second dice
If the rolled value is equal to 2, 3 or 12

Set player status to lose

Else If the rolled value is equal to 7 or 11

Set player status to win

Else

Set point value to rolled value

Set the rolled value to roll first dice + roll second dice

If the rolled value is equal to 7

Set player status to lose

Else If rolled value is equal to point value

Set player status to win

Else

Set the rolled value to roll first dice + roll second dice

If the rolled value is equal to 7

Set player status to lose

Else If rolled value is equal to point value

Set player status to win

Else

Reroll again and continue over and over

This is what we have so far in terms of the logic for our program. We started to create some variables like “rolled value”, “player status”, and “point value”, although not using standard variable naming conventions since it is only pseudocode—but we can start to see where they would come in. We also see that we’ve run into a situation where we have some repeated items that are obvious to create a loop for. In revising using loops, it will look like the following:

Set the rolled value to roll first dice + roll second dice
If the rolled value is equal to 2, 3 or 12

Set player status to lose

Else If the rolled value is equal to 7 or 11

Set player status to win

Else

Set point value to rolled value

While the player status is not set, run the following

Set the rolled value to roll first dice + roll second dice

If the rolled value is equal to 7

Set player status to lose

Else If rolled value is equal to point value

Set player status to win

Now that we have the logic in place, it should be easier to build this further, one layer at a time. In every program, there are aspects where we may have some of those items that are going to need to be expanded on but at this point, we’re looking strictly at the logic. For example, with a roll of the dice, think at a high level. What should this actually look like in code? We’ll get into that later on.

When it comes to your own program, you’ll want to do the same thing in terms of the overall logic. In the next lesson, we’ll start expanding this to another level.

This is a great starting point, but we now have some additional questions. For example, how do we store the information about the dice or even how many sides are on the dice? Someone who plays craps may know that they are using a six-sided die but there are four-sided, eight-sided, 10-sided, 12-sided, and even 100-sided die as well. We need to consider this as part of the actual program. We need to think about what a die consists of and what would be needed. For a die, we need to know how many numbers there are and how the die is rolled. In our case, each die has six sides, so the number needs to be between 1 and 6. By default, we can set the value to 1.

---

2. Guided Brainstorming

Now that you have an example, it’s time to start with yours! Break down the steps and find where those repeating patterns are. Are there certain conditions or examples where you can see those items being repeated? What variables exist that you would want information stored in? These are some things to think about with each of those steps to really break this down further.

In looking back at the Drink Order program from Unit 1 again, we had a few drink choice options. We defined the following four potential runs of the program based on the selection in the last lesson.

Hot Water:

1. User selects water
2. User selects hot water
3. Output water, hot

Cold Water:

1. User selects water
2. User selects cold water
3. User selects ice
4. Output water, cold, ice

Coffee:

1. User selects coffee
2. User selects decaffeinated
3. User selects milk
4. User selects sugar
5. Output coffee, decaffeinated, milk, sugar

Tea:

1. User selects tea
2. User selects green tea
3. Output tea, green

This would end up being a bad example for an entry for Part 3 of the journal, as this consists of specific choices rather than what the choices were. Remember that you want to break down the steps prior to actually developing the code. The logic is the part that you want to consider, as that generally is the most complex part. Although we already had a solution in place with the code, you should find it helpful to see what that would look like as pseudocode.

If you remember this completed program from the end of Unit 1, we had the initial menu structure of what can be selected:

Water

Hot

Cold

Ice/No Ice

Coffee

Decaffeinated or Not?

Milk or Cream or None

Sugar or None

Tea

Green

Black

Using this, we can follow the same structure as well. We have three main entries as a first step.

Ask user to enter in “water, coffee or tea”
Store input into drink
If drink is equal to water
…
Else If drink is equal to coffee
…
Else If drink is equal to tea
…

This gives us that first set of criteria that we can build on. Each of the items based on the drink selection has its own selections so there is no overlap between them. Next, we can start to add the components for the water

Ask user to enter in “water, coffee or tea”
Store input into drink
Store drink in outputString
If drink is equal to water

Ask user to enter in hot or cold

Store input in heat

If heat equal to hot

Add hot to outputString

Else If heat equal to cold

Add cold to outputString

Ask user to enter in ice or not

If ice is yes

Add ice to outputString

Else

Add no ice to output String

Else If drink is equal to coffee
...
Else If drink is equal to tea
…

Next, we can work on the coffee part. Each of the choices and selections could overlap which is different than with the water choices. In the water choices, the ice selection would only be there if cold was selected for the heat. However, with the choices, if coffee is selected, each of the selections is independent of one another. This is something that you want to think about when designing algorithms and finding patterns.

Ask user to enter in “water, coffee or tea”
Store input into drink
Store drink in outputString
If drink is equal to water

Ask user to enter in hot or cold

Store input in heat

If heat equal to hot

Add hot to outputString

Else If heat equal to cold

Add cold to outputString

Ask user to enter in ice or not

If ice is yes

Add ice to outputString

Else

Add no ice to output String

Else If drink is equal to coffee

Ask user to enter in decaf or not

Store input in decaf

If decaf equal to Yes

Add decaf to outputString

Ask user to enter in Milk, cream or none

Store input in milkCream

If milkCream equal to milk

Add milk to outputString

Else If milkCream equal to cream

Add cream to outputString

Ask user to enter in sugar or not

Store input in sugar

If sugar equal to Yes

Add sugar to outputString

Else If drink is equal to tea

Notice with our algorithm that we only looked at the instance where items like decaf are set to yes. We don’t worry about the “no” input because for any of these, we’re not adding any items to the outputString. Lastly, we’ll just have to complete the algorithm for the tea. This will be easier as it’s only doing a check between green and black tea.

Ask user to enter in “water, coffee or tea”
Store input into drink
Store drink in outputString
If drink is equal to water

Ask user to enter in hot or cold

Store input in heat

If heat equal to hot

Add hot to outputString

Else If heat equal to cold

Add cold to outputString

Ask user to enter in ice or not

If ice is yes

Add ice to outputString

Else

Add no ice to output String

Else If drink is equal to coffee

Ask user to enter in decaf or not

Store input in decaf

If decaf equal to Yes

Add decaf to outputString

Ask user to enter in Milk, cream or none

Store input in milkCream

If milkCream equal to milk

Add milk to outputString

Else If milkCream equal to cream

Add cream to outputString

Ask user to enter in sugar or not

Store input in sugar

If sugar equal to Yes

Add sugar to outputString

Else If drink is equal to tea

Ask user to enter in teaType

Store input in teaType

If teaType equal to green

Add green to outputString

Else If teaType equal to black

Add black to outputString

print outputString

This concludes this part of the algorithm around this program.

Directions: This is a time for you to take your different examples/scenarios and work through each to build out the algorithm and determine what patterns you have. Think about each scenario but also consider if you may have missed any scenarios, as there may have been other factors or paths that may have been missing.
