First Normal Form

1. Adding Relationships

Recall that in the first normal form (1NF), you can have only single values at the intersection of each row and column, meaning there should be no repeating groups. In order to manage this appropriately, you need to remove any repeating group by creating additional tables. The primary key in the original table will correspond to a foreign key in the new table that has been created expressly for the purpose of making the relationship.

Let's look at our movie ratings table to see how this works:

User	Movie Title	NumericRating	Textual Rating	Actor	Genre	ReleaseDate
Andy Joe	Toy Story	5	Such a classic!	Tom Hanks, Tim Allen	Animation, Adventure, Comedy	1995
Andy Joe	Titanic	4	Great movie!	Leonardo DiCaprio, Kate Winslet, Billy Zane, Kathy Bates	Drama	1997
Sophia McKenzie	Terminator 2: Judgment Day	5	Loved this movie, definitely a must watch!	Arnold Schwarzenegger, Linda Hamilton, Edward Furlong	Action, Science Fiction	1991
James Wang	Titanic	5	Best movie!	Leonardo DiCaprio, Kate Winslet, Billy Zane, Kathy Bates	Romance	1997
Barton Raftor	Titanic	3	It was OK, could be shorter.	Leonardo DiCaprio, Kate Winslet, Billy Zane, Kathy Bates	Drama, Romance	1997
Barton Raftor	Toy Story	4.5	Good movie! Watched a few times.	Tom Hanks, Tim Allen, Don Rickles, Jim Varney, Annie Potts, John Morris	Animation, Adventure, Comedy	1995

This table has the following attributes:

• Movie (User, MovieTitle, NumericRating, TextualRating, Actor, Genre, ReleaseDate)

In reviewing the data, you do not have any attributes that uniquely identify each row. You will create a new primary key for the table called MovieId. Now our attributes include the following:

• Movie (MovieId, User, MovieTitle, NumericRating, TextualRating, Actor, Genre, ReleaseDate)

You also have a few repeating groups in this table, including Actor and Genre. There can be many actors in a movie, which can belong to more than one genre. You will create a new table for each to remove the repeating groups for Actor and Genre. Now you have three tables:

• Movie (MovieId, User, MovieTitle, NumericRating, TextualRating, ReleaseDate)
• Actor (MovieId, ActorId, ActorName)
• Genre (MovieId, GenreId, GenreName)

Notice that the Actor and Genre tables each have a MovieId attribute that exists to be the foreign key in the relationship. Each of them has its own primary key that is not part of the relationship.

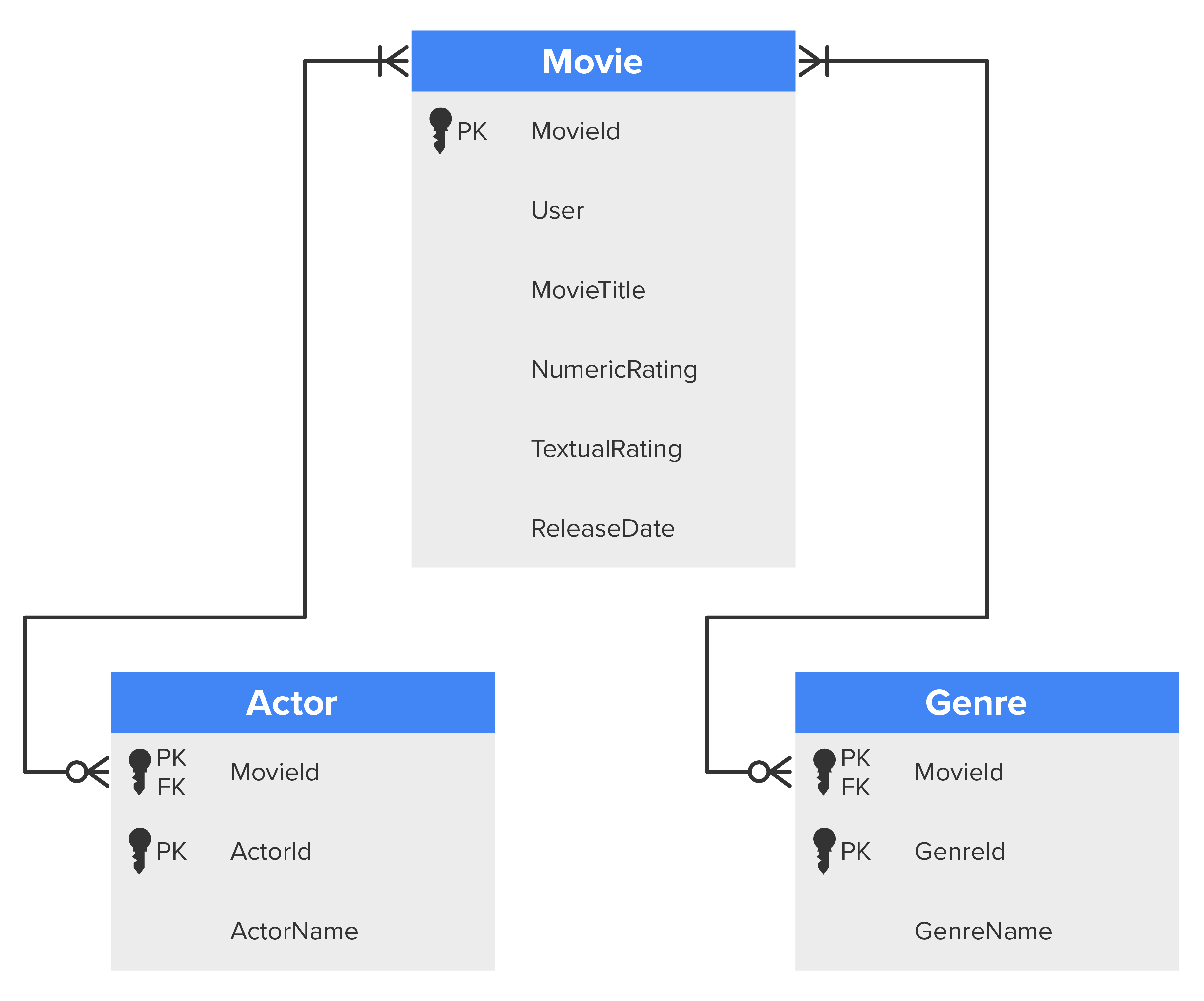

The resulting ERD should look like the following:

---

2. Splitting Column Data

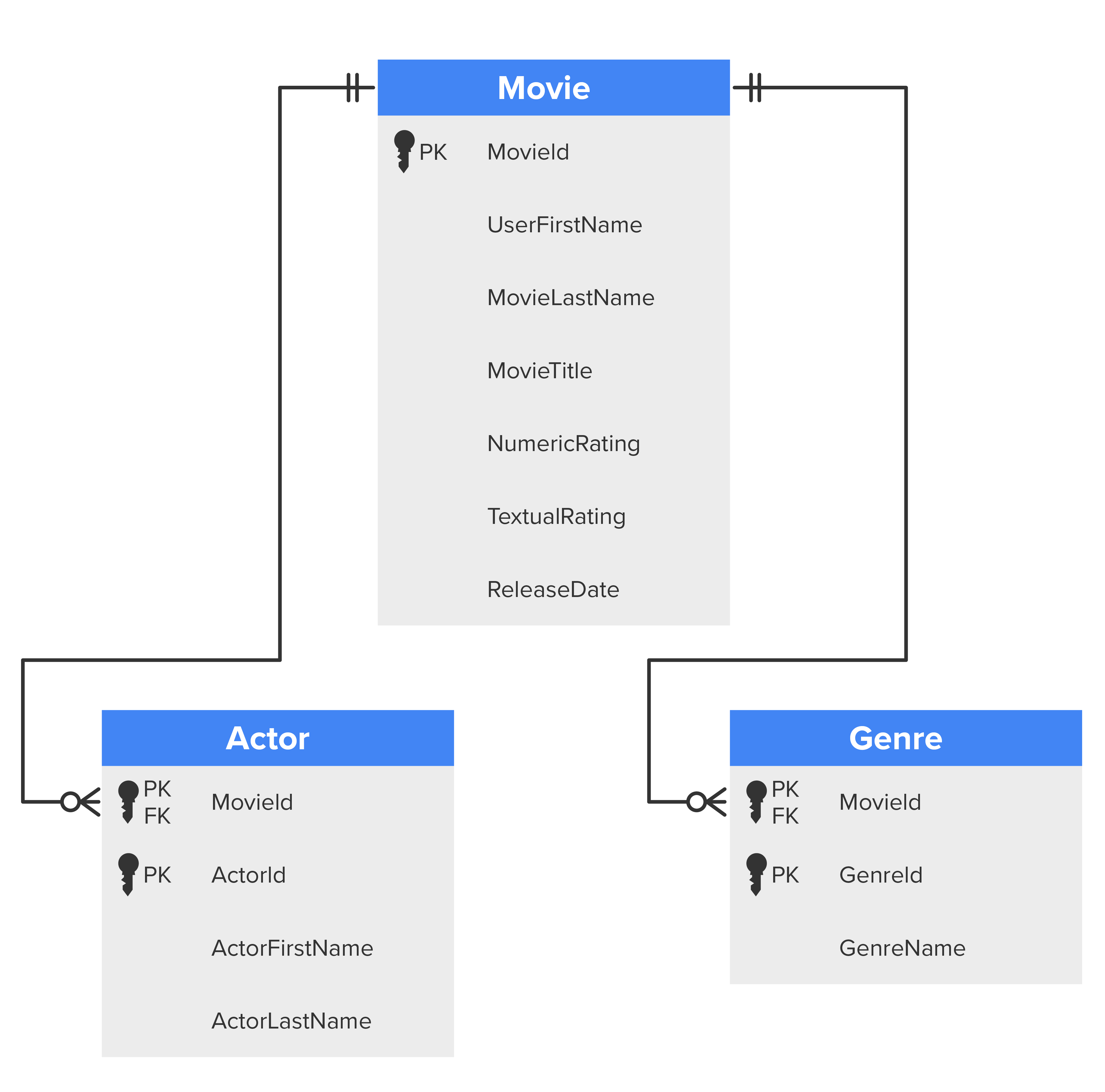

By going through the first normal form (1NF), you have enforced atomicity by removing all the repeating groups (multiple entries for a single record). However, there can still be scenarios where you may have multiple values stored in a single column. For example, in the Actor table, the actor's full name appears in the ActorName attribute. This is another form of having two entries in a single field, so it must change. To accomplish this, you can split the ActorName attribute into two attributes: ActorFirstName and ActorLastName. Now our set of tables looks like this:

• Movie (MovieId, UserFirstName, UserLastName, MovieTitle, NumericRating, TextualRating, ReleaseDate)
• Actor (MovieId, ActorId, ActorFirstName, ActorLastName)
• Genre (MovieId, GenreId, GenreName)

This complete first normal form (1NF) is ready for us to move to the second normal form (2NF).
